Troubleshooting Windows Feature Updates not being deploying using Intune/AutoPatch/WUfB

I have been banging my head why some machines wouldn’t deploy Windows 11 Windows Feature Updates (24H2) as part of Intune AutoPatch / WUfB.

I have seen many reasons, both related to Windows 11 24H2 requirements like TPM which wasn’t enabled, diskspace issues, client issues – but lastly also backend issues, where WUfB enrollment state was “stuck” in Offering/Enrolling-state.

June 2025 Workaround (FINALLY!) – Update stack remains stuck in a local scan state and doesn’t ask for deployments in WUFB related to Feature Updates

Issue: Microsoft support has informed me, that in sporadic occurrences, there is a bug, where the Update stack remains stuck in a local scan state and doesn’t ask for deployments in WUFB related to Feature Updates.

Problem: Some devices that are running Windows 10 or Windows 11, version 19H1 and above, aren’t able to install monthly security updates because of file or metadata corruption within the servicing stack. These devices may not be able to become up to date without a Feature Update.

Solution/Workaround: Microsoft is working on an fix, which will be included in Autopatch at some point this year, but until then we can fix it manually by added the below mentioned command on the client.
(Win11 23H2/24H2 only)

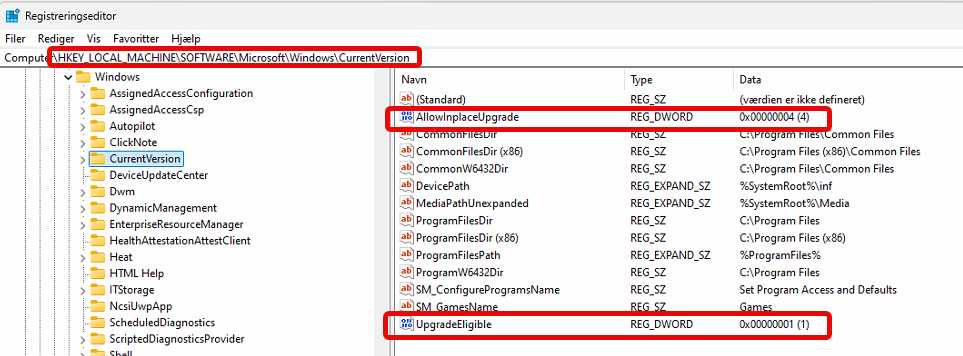

reg.exe Add HKLM\SOFTWARE\Microsoft\Windows\CurrentVersion /v AllowInplaceUpgrade /t REG_DWORD /f /d 4

(Win10 22H2/Win11 22H2 only)
Reg.exe Add HKLM\SOFTWARE\Microsoft\Windows\CurrentVersion /v UpgradeEligible /t REG_DWORD /f /d 1

Note:
* This registry value will be removed once the in-place upgrade is complete.
* It can take up to 48 hours for the in-place upgrade to be offered to the device.
* After the in-place upgrade, the device will be able to take new updates normally
* Don't confuse with the same regkey AllowInplaceUpgrade which normally resides in HKLM\SOFTWARE\Policies\Microsoft\Windows\WindowsUpdate. For this parameter to work with value = 4, it must be set in HKLM\SOFTWARE\Microsoft\Windows\CurrentVersion
In a rather cryptic way, this is also covered in this Microsoft article, even though the above reg-keys and values are not mentioned.

This blog contains the scripts I used to solve this – both related to backend-issues like device is stuck in ‘Offering’ state – and also endpoint-related issues.

Microsoft has also released a troubleshooting guide, which you can find here

I’m using the Microsoft Graph API endpoint mentioned in the Microsoft guide (“https://graph.microsoft.com/beta/admin/windows/updates/updatableAssets”). You can see link in each section below to the Graph documentation. Click here to access the documentation.

As always, be patience when you make backend changes (I have seen from a few hours to up to 72 hours).

Intune/AutoPatch/WUfB troubleshooting

Authentication Microsoft Graph (prereq)

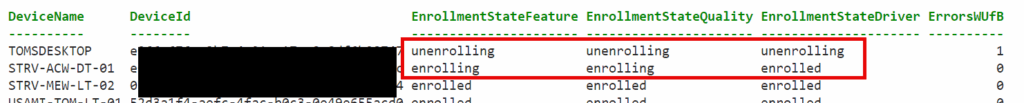

Intune: Get overview of enrollment status in AutoPatch/WUfB
Intune: Force Un-enroll Windows Client devices from WUfB AutoPatch, where state is NOT ‘Enrolled’ (Feature Updates only)
Intune: Force Delete All Windows Client devices from WUfB AutoPatch, where Feature Update enrollment state is stuck in ‘enrolling’ or ‘unenrolling’
Intune: Enroll Windows Client devices into WUfB AutoPatch with ‘NotEnrolled’ state (Feature Updates only)
Intune: Force Un-enroll Windows Client devices from WUfB AutoPatch (Feature Updates only)
Intune: Force Delete All Windows Client devices from WUfB AutoPatch (Only use, if you want complete reset !!!)
Intune: Enroll All Windows Client devices into WUfB AutoPatch (Quality Updates only)
Intune: Enroll All Windows Client devices into WUfB AutoPatch (Driver Updates only)
Intune: Enroll Windows Client devices into WUfB AutoPatch with ‘NotEnrolled’ state (Quality Updates only)
Intune: Enroll Windows Client devices into WUfB AutoPatch with ‘NotEnrolled’ state (Driver Updates only)

Windows Client troubleshooting

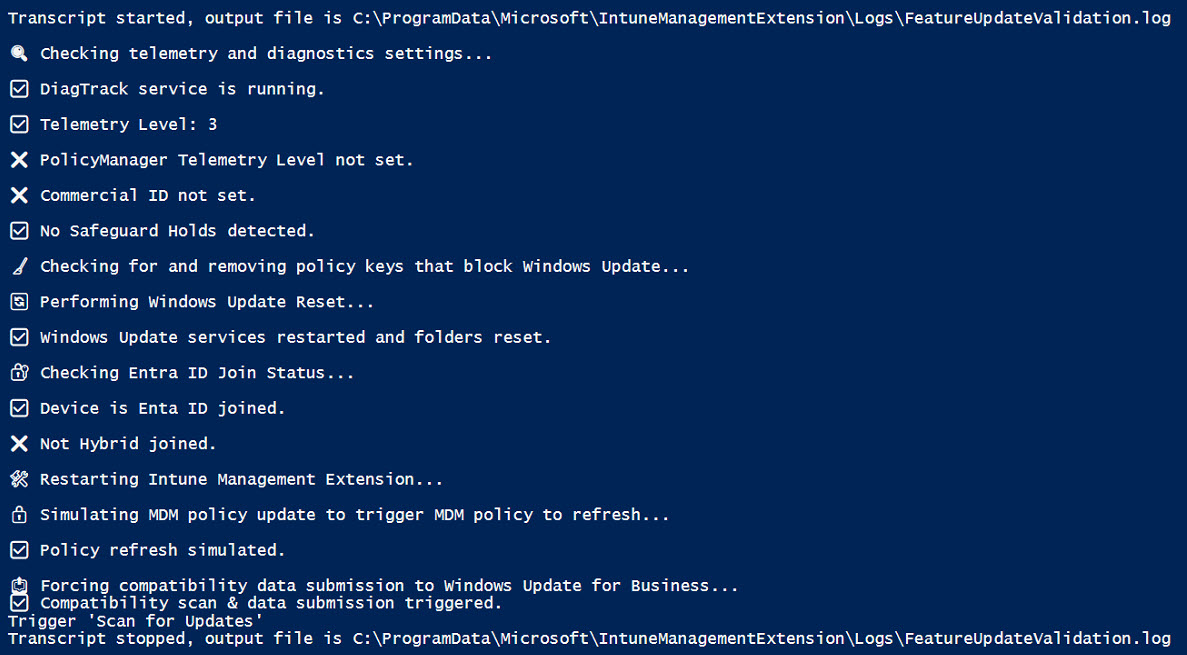

Endpoint: Windows client troubleshooting
Workaround for Stuck Update Stack (client-fix)

Workaround for Stuck Update Stack

I have done a support-case with Microsoft support, where they have concluded that in sporadic occurrences, there is a backend bug, where the Update stack remains stuck in a local scan state and doesn’t ask for deployments in WUFB related to Feature Updates.

Cause for this issue is, when devices are un-enrolling and enrolling in WUfB and the Managed Update Session Orchestrator (MUSE) in some scenarios doesn’t handle this as intended.

Microsoft is working on an fix, which will be included in Autopatch at some point this year, but until then we can fix it manually by added the below mentioned command on the client.

I waited 48 hours and then Windows Feature Packs was offered on the impacted devices.

reg.exe Add HKLM\SOFTWARE\Microsoft\Windows\CurrentVersion /v AllowInplaceUpgrade /t REG_DWORD /f /d 4

Note:

This registry value will be removed once the in-place upgrade is complete.

It can take up to 48 hours for the in-place upgrade to be offered to the device.

After the in-place upgrade, the device will be able to take new updates normally.

Scripts (Github)

All scripts are shown below, but you can also get them from my Github.

Intune: Get overview of enrollment status in AutoPatch/WUfB

# Get Status about Windows Client devices from WUfB AutoPatch

function Get-WUfBEnrollmentStatus {
    <#
    .SYNOPSIS
        Retrieves the WUfB AutoPatch enrollment status for Windows client devices managed by Intune (MDM).

    .PARAMETER ShowStatus
        Optional. If specified, displays output during processing using Write-Host.

    .OUTPUTS
        [PSCustomObject] array with DeviceName, DeviceId, EnrollmentStateFeature, EnrollmentStateQuality, EnrollmentStateDriver
    #>

    param (
        [switch]$ShowStatus = $false
    )

    $StatusEnrollmentWUfB = @()

    if ($ShowStatus) {
        Write-Host ""
        Write-Host "📥 Retrieving all devices from Intune..."
    }

    $devices = @()
    $uri = "https://graph.microsoft.com/beta/deviceManagement/managedDevices"

    do {
        $response = Invoke-MgGraphRequest -Method GET -Uri $uri
        $devices += $response.value
        $uri = $response.'@odata.nextLink'
    } while ($uri)

    $ScopedDevices = $devices | Where-Object {
        $_.managementAgent -eq "mdm" -and $_.operatingSystem -like "Windows*"
    }

    if ($ShowStatus) {
        Write-Host ""
        Write-Host "✅ Scoped devices found: $($ScopedDevices.Count)"
    }

    foreach ($device in $ScopedDevices) {
        $deviceName = $device.deviceName
        $deviceId = $device.azureADDeviceId

        if ($ShowStatus) {
            Write-Host ""
            Write-Host "🔍 Processing device: $deviceName ($deviceId)"
        }

        $enrollmentStateFeature = $null
        $enrollmentStateQuality = $null
        $enrollmentStateDriver = $null
        $errorsWUfB = 0

        try {
            $wuAsset = Invoke-MgGraphRequest -Method GET -Uri "https://graph.microsoft.com/beta/admin/windows/updates/updatableAssets/$deviceId"
            $enrollmentStateFeature = $wuAsset.enrollment.feature.enrollmentState
            $enrollmentStateQuality = $wuAsset.enrollment.quality.enrollmentState
            $enrollmentStateDriver  = $wuAsset.enrollment.driver.enrollmentState
            $errorsWUfB = if ($wuAsset.errors) { $wuAsset.errors.Count } else { 0 }

            if ($ShowStatus) {
                Write-Host "📋 Enrollment State Feature: $enrollmentStateFeature"
                Write-Host "📋 Enrollment State Quality: $enrollmentStateQuality"
                Write-Host "📋 Enrollment State Driver : $enrollmentStateDriver"
                Write-Host "📋 Errors (WUfB)           : $errorsWUfB"
            }

            $StatusObj = [PSCustomObject]@{
                DeviceName             = $deviceName
                DeviceId               = $deviceId
                EnrollmentStateFeature = $enrollmentStateFeature
                EnrollmentStateQuality = $enrollmentStateQuality
                EnrollmentStateDriver  = $enrollmentStateDriver
                ErrorsWUfB             = $errorsWUfB
            }

            $StatusEnrollmentWUfB += $StatusObj
        }
        catch {
            if ($_.Exception.Response.StatusCode.value__ -eq 404) {
                if ($ShowOut) {
                    Write-Host "ℹ️ Device not found in WUfB AutoPatch"
                }
            } else {
                if ($ShowStatus) {
                    Write-Host "❌ Failed to process $deviceName ($deviceId): $($_.Exception.Message)"
                }
            }
            continue
        }
    }

    return $StatusEnrollmentWUfB
}

# Call the function and save results
$WUStatus = Get-WUfBEnrollmentStatus -ShowStatus

# Optionally view as a table
$WUStatus | Sort-Object EnrollmentStateFeature, EnrollmentStateQuality, EnrollmentStateDriver -Descending | Format-Table -AutoSize

# Call the function and save results
$WUStatus = Get-WUfBEnrollmentStatus -ShowStatus

# Optionally view as a table
$WUStatus | Sort-Object EnrollmentStateFeature, EnrollmentStateQuality, EnrollmentStateDriver -Descending | Format-Table -AutoSize

Authentication (Microsoft Graph)

# First, ensure you're connected to Graph with the right scopes:
Connect-MgGraph -Scopes "DeviceManagementManagedDevices.ReadWrite.All", "WindowsUpdates.ReadWrite.All"

Intune: Force Un-enroll Windows Client devices from WUfB AutoPatch, where state is NOT ‘Enrolled’ (Feature Updates only)

# Force Un-enroll Windows Client devices from WUfB AutoPatch, where state is NOT 'Enrolled' (Feature Updates only)

# https://learn.microsoft.com/en-us/graph/api/windowsupdates-updatableasset-unenrollassets?view=graph-rest-beta&tabs=http

Write-Host ""
Write-Host "📥 Retrieving all devices from Intune..."

$devices = @()
$uri = "https://graph.microsoft.com/beta/deviceManagement/managedDevices"

do {
    $response = Invoke-MgGraphRequest -Method GET -Uri $uri
    $devices += $response.value
    $uri = $response.'@odata.nextLink'
} while ($uri)

write-host "Get enrollment status for devices ... Pleae Wait !"
$StatusEnrollmentWUfB = Get-WUfBEnrollmentStatus

# Build a lookup dictionary from enrollment status for fast access
$StatusLookup = @{}
foreach ($entry in $StatusEnrollmentWUfB) {
    $StatusLookup[$entry.DeviceId] = $entry
}

# Filter: MDM-managed Windows devices that are NOT enrolled for 'feature' updates
$ScopedDevices = $devices | Where-Object {
    $_.managementAgent -eq "mdm" -and
    $_.operatingSystem -like "Windows*" -and
    $StatusLookup.ContainsKey($_.azureADDeviceId) -and
    $StatusLookup[$_.azureADDeviceId].EnrollmentStateFeature -ne "enrolled"
}

Write-Host ""
Write-Host "✅ Scoped devices found: $($ScopedDevices.Count)"

# === LOOP THROUGH DEVICES ===
foreach ($device in $ScopedDevices) {
    $deviceName = $device.deviceName
    $deviceId = $device.azureADDeviceId

    Write-Host ""
    Write-Host "🔍 Processing device: $deviceName ($deviceId)"

    # Build JSON body for (un)enrollment
    $body = @{
        updateCategory = "feature"
        assets = @(
            @{
                "@odata.type" = "#microsoft.graph.windowsUpdates.azureADDevice"
                id = $deviceId
            }
        )
    }
    $jsonBody = $body | ConvertTo-Json -Depth 5

    Invoke-MgGraphRequest -Method POST `
        -Uri "https://graph.microsoft.com/beta/admin/windows/updates/updatableAssets/unenrollAssets" `
        -Body $jsonBody `
        -ContentType "application/json"
}

Intune: Force Delete All Windows Client devices from WUfB AutoPatch, where Feature Update enrollment state is stuck in ‘enrolling’ or ‘unenrolling’

# Force Delete All Windows Client devices from WUfB AutoPatch, where Feature Update enrollment state is stuck in 'enrolling' or 'unenrolling'

# https://learn.microsoft.com/en-us/graph/api/windowsupdates-updatableasset-delete?view=graph-rest-beta&tabs=http

Write-Host ""
Write-Host "📥 Retrieving all devices from Intune..."

$devices = @()
$uri = "https://graph.microsoft.com/beta/deviceManagement/managedDevices"

do {
    $response = Invoke-MgGraphRequest -Method GET -Uri $uri
    $devices += $response.value
    $uri = $response.'@odata.nextLink'
} while ($uri)

# Filter only Windows client devices managed by Intune
write-host "Get enrollment status for devices ... Please Wait !"
$StatusEnrollmentWUfB = Get-WUfBEnrollmentStatus

# Build a lookup dictionary from enrollment status for fast access
$StatusLookup = @{}
foreach ($entry in $StatusEnrollmentWUfB) {
    $StatusLookup[$entry.DeviceId] = $entry
}

# Filter: MDM-managed Windows devices that are NOT enrolled for 'feature' updates
$ScopedDevices = $devices | Where-Object {
    $_.managementAgent -eq "mdm" -and
    $_.operatingSystem -like "Windows*" -and
    $StatusLookup.ContainsKey($_.azureADDeviceId) -and
    $StatusLookup[$_.azureADDeviceId].EnrollmentStateFeature -eq "enrolling" -or $StatusLookup[$_.azureADDeviceId].EnrollmentStateFeature -eq "unenrolling"
}
Write-Host ""
Write-Host "✅ Scoped devices found: $($ScopedDevices.Count)"

# === LOOP THROUGH DEVICES ===
foreach ($device in $ScopedDevices) {
    $deviceName = $device.deviceName
    $deviceId = $device.azureADDeviceId

    Write-Host ""
    Write-Host "🔍 Processing device: $deviceName ($deviceId)"

    Invoke-MgGraphRequest -Method DELETE `
        -Uri "https://graph.microsoft.com/beta/admin/windows/updates/updatableAssets/$deviceId"
}

Intune: Enroll Windows Client devices into WUfB AutoPatch (Feature Updates only) – will also include devices, that was deleted before (catch-up)

# Enroll Windows Client devices into WUfB AutoPatch (Feature Updates only) - will also include devices, that was deleted before (catch-up)

# https://learn.microsoft.com/en-us/graph/api/windowsupdates-updatableasset-enrollassets?view=graph-rest-beta&tabs=http

Write-Host ""
Write-Host "📥 Retrieving all devices from Intune..."

$devices = @()
$uri = "https://graph.microsoft.com/beta/deviceManagement/managedDevices"

do {
    $response = Invoke-MgGraphRequest -Method GET -Uri $uri
    $devices += $response.value
    $uri = $response.'@odata.nextLink'
} while ($uri)

# Filter only Windows client devices managed by Intune
$ScopedDevices = $devices | Where-Object { $_.managementAgent -eq "mdm" -and $_.operatingSystem -like "Windows*"}
Write-Host ""
Write-Host "✅ Scoped devices found: $($ScopedDevices.Count)"

# === LOOP THROUGH DEVICES ===
foreach ($device in $ScopedDevices) {
    $deviceName = $device.deviceName
    $deviceId = $device.azureADDeviceId

    Write-Host ""
    Write-Host "🔍 Processing device: $deviceName ($deviceId)"

    # Build JSON body for enrollment
    $body = @{
        updateCategory = "feature"
        assets = @(
            @{
                "@odata.type" = "#microsoft.graph.windowsUpdates.azureADDevice"
                id = $deviceId
            }
        )
    }
    $jsonBody = $body | ConvertTo-Json -Depth 5

    Invoke-MgGraphRequest -Method POST `
        -Uri "https://graph.microsoft.com/beta/admin/windows/updates/updatableAssets/enrollAssets" `
        -Body $jsonBody `
        -ContentType "application/json"
}

Intune: Enroll Windows Client devices into WUfB AutoPatch with ‘NotEnrolled’ state (Feature Updates only)

# Enroll Windows Client devices into WUfB AutoPatch with 'NotEnrolled' state (Feature Updates only)

# https://learn.microsoft.com/en-us/graph/api/windowsupdates-updatableasset-enrollassets?view=graph-rest-beta&tabs=http

Write-Host ""
Write-Host "📥 Retrieving all devices from Intune..."

$devices = @()
$uri = "https://graph.microsoft.com/beta/deviceManagement/managedDevices"

do {
    $response = Invoke-MgGraphRequest -Method GET -Uri $uri
    $devices += $response.value
    $uri = $response.'@odata.nextLink'
} while ($uri)

write-host "Get enrollment status for devices ... Please Wait !"
$StatusEnrollmentWUfB = Get-WUfBEnrollmentStatus

# Build a lookup dictionary from enrollment status for fast access
$StatusLookup = @{}
foreach ($entry in $StatusEnrollmentWUfB) {
    $StatusLookup[$entry.DeviceId] = $entry
}

# Filter: MDM-managed Windows devices that are NOT enrolled for 'feature' updates
$ScopedDevices = $devices | Where-Object {
    $_.managementAgent -eq "mdm" -and
    $_.operatingSystem -like "Windows*" -and
    $StatusLookup.ContainsKey($_.azureADDeviceId) -and
    $StatusLookup[$_.azureADDeviceId].EnrollmentStateFeature -eq "notEnrolled"   # filter for 'NotEnrolled' state. We don't want to include 'unenrolling', but let them finish first
}
Write-Host ""
Write-Host "✅ Scoped devices found: $($ScopedDevices.Count)"

# === LOOP THROUGH DEVICES ===
foreach ($device in $ScopedDevices) {
    $deviceName = $device.deviceName
    $deviceId = $device.azureADDeviceId

    Write-Host ""
    Write-Host "🔍 Processing device: $deviceName ($deviceId)"

    #####################
    # Feature Updates
    #####################
        # Build JSON body for enrollment
        $body = @{
            updateCategory = "feature"
            assets = @(
                @{
                    "@odata.type" = "#microsoft.graph.windowsUpdates.azureADDevice"
                    id = $deviceId
                }
            )
        }
        $jsonBody = $body | ConvertTo-Json -Depth 5

        Invoke-MgGraphRequest -Method POST `
            -Uri "https://graph.microsoft.com/beta/admin/windows/updates/updatableAssets/enrollAssets" `
            -Body $jsonBody `
            -ContentType "application/json"
}

Intune: Force Un-enroll Windows Client devices from WUfB AutoPatch (Feature Updates only)

# Force Un-enroll Windows Client devices from WUfB AutoPatch (Feature Updates only)

# https://learn.microsoft.com/en-us/graph/api/windowsupdates-updatableasset-unenrollassets?view=graph-rest-beta&tabs=http

Write-Host ""
Write-Host "📥 Retrieving all devices from Intune..."

$devices = @()
$uri = "https://graph.microsoft.com/beta/deviceManagement/managedDevices"

do {
    $response = Invoke-MgGraphRequest -Method GET -Uri $uri
    $devices += $response.value
    $uri = $response.'@odata.nextLink'
} while ($uri)

# Filter only Windows client devices managed by Intune
$ScopedDevices = $devices | Where-Object { $_.managementAgent -eq "mdm" -and $_.operatingSystem -like "Windows*"}
Write-Host ""
Write-Host "✅ Scoped devices found: $($ScopedDevices.Count)"

# === LOOP THROUGH DEVICES ===
foreach ($device in $ScopedDevices) {
    $deviceName = $device.deviceName
    $deviceId = $device.azureADDeviceId

    Write-Host ""
    Write-Host "🔍 Processing device: $deviceName ($deviceId)"

    # Build JSON body for (un)enrollment
    $body = @{
        updateCategory = "feature"
        assets = @(
            @{
                "@odata.type" = "#microsoft.graph.windowsUpdates.azureADDevice"
                id = $deviceId
            }
        )
    }
    $jsonBody = $body | ConvertTo-Json -Depth 5

    Invoke-MgGraphRequest -Method POST `
        -Uri "https://graph.microsoft.com/beta/admin/windows/updates/updatableAssets/unenrollAssets" `
        -Body $jsonBody `
        -ContentType "application/json"
}

Intune: Force Delete All Windows Client devices from WUfB AutoPatch (Only use, if you want complete reset !!!)

# Force Delete All Windows Client devices from WUfB AutoPatch (Only use, if you want complete reset !!!)

# https://learn.microsoft.com/en-us/graph/api/windowsupdates-updatableasset-delete?view=graph-rest-beta&tabs=http

Write-Host ""
Write-Host "📥 Retrieving all devices from Intune..."

$devices = @()
$uri = "https://graph.microsoft.com/beta/deviceManagement/managedDevices"

do {
    $response = Invoke-MgGraphRequest -Method GET -Uri $uri
    $devices += $response.value
    $uri = $response.'@odata.nextLink'
} while ($uri)

# Filter only Windows client devices managed by Intune
$ScopedDevices = $devices | Where-Object { $_.managementAgent -eq "mdm" -and $_.operatingSystem -like "Windows*"}
Write-Host ""
Write-Host "✅ Scoped devices found: $($ScopedDevices.Count)"

# === LOOP THROUGH DEVICES ===
foreach ($device in $ScopedDevices) {
    $deviceName = $device.deviceName
    $deviceId = $device.azureADDeviceId

    Write-Host ""
    Write-Host "🔍 Processing device: $deviceName ($deviceId)"

    Invoke-MgGraphRequest -Method DELETE `
        -Uri "https://graph.microsoft.com/beta/admin/windows/updates/updatableAssets/$deviceId"
}

Intune: Enroll All Windows Client devices into WUfB AutoPatch (Quality Updates only)

# Enroll All Windows Client devices into WUfB AutoPatch (Quality Updates only)

# https://learn.microsoft.com/en-us/graph/api/windowsupdates-updatableasset-enrollassets?view=graph-rest-beta&tabs=http

Write-Host ""
Write-Host "📥 Retrieving all devices from Intune..."

$devices = @()
$uri = "https://graph.microsoft.com/beta/deviceManagement/managedDevices"

do {
    $response = Invoke-MgGraphRequest -Method GET -Uri $uri
    $devices += $response.value
    $uri = $response.'@odata.nextLink'
} while ($uri)

# Filter only Windows client devices managed by Intune
$ScopedDevices = $devices | Where-Object { $_.managementAgent -eq "mdm" -and $_.operatingSystem -like "Windows*"}
Write-Host ""
Write-Host "✅ Scoped devices found: $($ScopedDevices.Count)"

# === LOOP THROUGH DEVICES ===
foreach ($device in $ScopedDevices) {
    $deviceName = $device.deviceName
    $deviceId = $device.azureADDeviceId

    Write-Host ""
    Write-Host "🔍 Processing device: $deviceName ($deviceId)"

    #####################
    # Quality Updates
    #####################
    # Build JSON body for enrollment
    $body = @{
        updateCategory = "quality"
        assets = @(
            @{
                "@odata.type" = "#microsoft.graph.windowsUpdates.azureADDevice"
                id = $deviceId
            }
        )
    }
    $jsonBody = $body | ConvertTo-Json -Depth 5

    Invoke-MgGraphRequest -Method POST `
        -Uri "https://graph.microsoft.com/beta/admin/windows/updates/updatableAssets/enrollAssets" `
        -Body $jsonBody `
        -ContentType "application/json"
}

Intune: Enroll All Windows Client devices into WUfB AutoPatch (Driver Updates only)

# Enroll All Windows Client devices into WUfB AutoPatch (Driver Updates only)

# https://learn.microsoft.com/en-us/graph/api/windowsupdates-updatableasset-enrollassets?view=graph-rest-beta&tabs=http

Write-Host ""
Write-Host "📥 Retrieving all devices from Intune..."

$devices = @()
$uri = "https://graph.microsoft.com/beta/deviceManagement/managedDevices"

do {
    $response = Invoke-MgGraphRequest -Method GET -Uri $uri
    $devices += $response.value
    $uri = $response.'@odata.nextLink'
} while ($uri)

# Filter only Windows client devices managed by Intune
$ScopedDevices = $devices | Where-Object { $_.managementAgent -eq "mdm" -and $_.operatingSystem -like "Windows*"}
Write-Host ""
Write-Host "✅ Scoped devices found: $($ScopedDevices.Count)"

# === LOOP THROUGH DEVICES ===
foreach ($device in $ScopedDevices) {
    $deviceName = $device.deviceName
    $deviceId = $device.azureADDeviceId

    Write-Host ""
    Write-Host "🔍 Processing device: $deviceName ($deviceId)"

    #####################
    # Driver Updates
    #####################
        # Build JSON body for enrollment
        $body = @{
            updateCategory = "driver"
            assets = @(
                @{
                    "@odata.type" = "#microsoft.graph.windowsUpdates.azureADDevice"
                    id = $deviceId
                }
            )
        }
        $jsonBody = $body | ConvertTo-Json -Depth 5

        Invoke-MgGraphRequest -Method POST `
            -Uri "https://graph.microsoft.com/beta/admin/windows/updates/updatableAssets/enrollAssets" `
            -Body $jsonBody `
            -ContentType "application/json"
}

Intune: Enroll Windows Client devices into WUfB AutoPatch with ‘NotEnrolled’ state (Quality Updates only)

# Enroll Windows Client devices into WUfB AutoPatch with 'NotEnrolled' state (Quality Updates only)

# https://learn.microsoft.com/en-us/graph/api/windowsupdates-updatableasset-enrollassets?view=graph-rest-beta&tabs=http

Write-Host ""
Write-Host "📥 Retrieving all devices from Intune..."

$devices = @()
$uri = "https://graph.microsoft.com/beta/deviceManagement/managedDevices"

do {
    $response = Invoke-MgGraphRequest -Method GET -Uri $uri
    $devices += $response.value
    $uri = $response.'@odata.nextLink'
} while ($uri)

write-host "Get enrollment status for devices ... Please Wait !"
$StatusEnrollmentWUfB = Get-WUfBEnrollmentStatus

# Build a lookup dictionary from enrollment status for fast access
$StatusLookup = @{}
foreach ($entry in $StatusEnrollmentWUfB) {
    $StatusLookup[$entry.DeviceId] = $entry
}

# Filter: MDM-managed Windows devices that are NOT enrolled for 'feature' updates
$ScopedDevices = $devices | Where-Object {
    $_.managementAgent -eq "mdm" -and
    $_.operatingSystem -like "Windows*" -and
    $StatusLookup.ContainsKey($_.azureADDeviceId) -and
    $StatusLookup[$_.azureADDeviceId].EnrollmentStateQuality -eq "notEnrolled"   # filter for 'NotEnrolled' state. We don't want to include 'unenrolling', but let them finish first
}
Write-Host ""
Write-Host "✅ Scoped devices found: $($ScopedDevices.Count)"

# === LOOP THROUGH DEVICES ===
foreach ($device in $ScopedDevices) {
    $deviceName = $device.deviceName
    $deviceId = $device.azureADDeviceId

    Write-Host ""
    Write-Host "🔍 Processing device: $deviceName ($deviceId)"

    #####################
    # Quality Updates
    #####################
        # Build JSON body for enrollment
        $body = @{
            updateCategory = "quality"
            assets = @(
                @{
                    "@odata.type" = "#microsoft.graph.windowsUpdates.azureADDevice"
                    id = $deviceId
                }
            )
        }
        $jsonBody = $body | ConvertTo-Json -Depth 5

        Invoke-MgGraphRequest -Method POST `
            -Uri "https://graph.microsoft.com/beta/admin/windows/updates/updatableAssets/enrollAssets" `
            -Body $jsonBody `
            -ContentType "application/json"
}

Intune: Enroll Windows Client devices into WUfB AutoPatch with ‘NotEnrolled’ state (Driver Updates only)

# Enroll Windows Client devices into WUfB AutoPatch with 'NotEnrolled' state (Driver Updates only)

# https://learn.microsoft.com/en-us/graph/api/windowsupdates-updatableasset-enrollassets?view=graph-rest-beta&tabs=http

Write-Host ""
Write-Host "📥 Retrieving all devices from Intune..."

$devices = @()
$uri = "https://graph.microsoft.com/beta/deviceManagement/managedDevices"

do {
    $response = Invoke-MgGraphRequest -Method GET -Uri $uri
    $devices += $response.value
    $uri = $response.'@odata.nextLink'
} while ($uri)

write-host "Get enrollment status for devices ... Please Wait !"
$StatusEnrollmentWUfB = Get-WUfBEnrollmentStatus

# Build a lookup dictionary from enrollment status for fast access
$StatusLookup = @{}
foreach ($entry in $StatusEnrollmentWUfB) {
    $StatusLookup[$entry.DeviceId] = $entry
}

# Filter: MDM-managed Windows devices that are NOT enrolled for 'feature' updates
$ScopedDevices = $devices | Where-Object {
    $_.managementAgent -eq "mdm" -and
    $_.operatingSystem -like "Windows*" -and
    $StatusLookup.ContainsKey($_.azureADDeviceId) -and
    $StatusLookup[$_.azureADDeviceId].EnrollmentStateDriver -eq "notEnrolled"   # filter for 'NotEnrolled' state. We don't want to include 'unenrolling', but let them finish first
}
Write-Host ""
Write-Host "✅ Scoped devices found: $($ScopedDevices.Count)"

# === LOOP THROUGH DEVICES ===
foreach ($device in $ScopedDevices) {
    $deviceName = $device.deviceName
    $deviceId = $device.azureADDeviceId

    Write-Host ""
    Write-Host "🔍 Processing device: $deviceName ($deviceId)"

    #####################
    # Driver Updates
    #####################
        # Build JSON body for enrollment
        $body = @{
            updateCategory = "driver"
            assets = @(
                @{
                    "@odata.type" = "#microsoft.graph.windowsUpdates.azureADDevice"
                    id = $deviceId
                }
            )
        }
        $jsonBody = $body | ConvertTo-Json -Depth 5

        Invoke-MgGraphRequest -Method POST `
            -Uri "https://graph.microsoft.com/beta/admin/windows/updates/updatableAssets/enrollAssets" `
            -Body $jsonBody `
            -ContentType "application/json"
}

Endpoint: Windows client troubleshooting

This script can be used on the Windows endpoint. You must adjust the variables to your needs

<#
    .NAME
    Windows Client Troubleshooting (

    .SYNOPSIS

    .NOTES

    .VERSION
    1.0

    .AUTHOR
    Morten Knudsen, Microsoft MVP - https://mortenknudsen.net

    .LICENSE
    Licensed under the MIT license.

    .PROJECTURI
    https://github.com/KnudsenMorten/Intune-Windows-Update-Troubleshooting


    .WARRANTY
    Use at your own risk, no warranty given!
#>

# === CONFIGURATION ===
$CollectCompleteLogs = $false
$CollectWULogsOnly = $false
$RunSystemRepairs = $false
$RunWUReset = $true
$RunPolicySimulation = $true
$RunWUCheck = $true
$RunTelemetryCheck = $true
$RunIMECheck = $true
$RunDSREGCheck = $true
$RunIMERepair = $false


# === SETUP ===
$LogPath = "C:\ProgramData\Microsoft\IntuneManagementExtension\Logs\FeatureUpdateValidation.log"
New-Item -ItemType Directory -Path (Split-Path $LogPath) -Force | Out-Null
Start-Transcript -Path $LogPath -Append


# === ADMIN CHECK ===
if (-not ([Security.Principal.WindowsPrincipal][Security.Principal.WindowsIdentity]::GetCurrent()).IsInRole(
    [Security.Principal.WindowsBuiltInRole]::Administrator)) {
    Write-Host ""
    Write-Host "❌ Please run this script as Administrator."
    Stop-Transcript
    exit 1
}


# === SYSTEM REPAIR SECTION ===
if ($RunSystemRepairs) {
    Write-Host ""
    Write-Host "⚙ Performing system file integrity checks..."
    sfc /scannow
    dism /online /cleanup-image /scanhealth
    DISM /Online /Cleanup-Image /RestoreHealth
    Dism.exe /online /Cleanup-Image /StartComponentCleanup /ResetBase
}


# === TELEMETRY & SERVICE CHECKS ===
if ($RunTelemetryCheck) {
    Write-Host ""
    Write-Host "🔍 Checking telemetry and diagnostics settings..."

    function Check-RegistryValue {
        param ([string]$Path, [string]$Name)
        try {
            $value = Get-ItemProperty -Path $Path -Name $Name -ErrorAction Stop
            return $value.$Name
        } catch {
            return $null
        }
    }

    $diagTrack = Get-Service -Name "DiagTrack" -ErrorAction SilentlyContinue
    Write-Host ""
    if ($diagTrack -and $diagTrack.Status -eq 'Running') {
        Write-Host "✅ DiagTrack service is running."
    } else {
        Write-Host "❌ DiagTrack service is not running."
    }

    $telemetryLevel = Check-RegistryValue -Path "HKLM:\SOFTWARE\Microsoft\Windows\CurrentVersion\Policies\DataCollection" -Name "AllowTelemetry"
    Write-Host ""
    if ($telemetryLevel -ge 3) {
        Write-Host "✅ Telemetry Level: $telemetryLevel"
    } else {
        Write-Host "❌ Telemetry Level too low: $telemetryLevel (min: 3)"
    }

    $policyTelemetry = Check-RegistryValue -Path "HKLM:\SOFTWARE\Microsoft\PolicyManager\current\device\System" -Name "AllowTelemetry"
    Write-Host ""
    if ($policyTelemetry) {
        Write-Host "✅ PolicyManager Telemetry Level: $policyTelemetry"
    } else {
        Write-Host "❌ PolicyManager Telemetry Level not set."
    }

    $commercialId = Check-RegistryValue -Path "HKLM:\SOFTWARE\Microsoft\Windows\CurrentVersion\Policies\DataCollection" -Name "CommercialId"
    Write-Host ""
    if ($commercialId) {
        Write-Host "✅ Commercial ID set: $commercialId"
    } else {
        Write-Host "❌ Commercial ID not set."
    }

    $safeguardHold = Check-RegistryValue -Path "HKLM:\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\TargetVersionUpgradeExperienceIndicators" -Name "UpgEx"
    Write-Host ""
    if ($safeguardHold) {
        Write-Host "❌ Safeguard Hold Detected: $safeguardHold"
    } else {
        Write-Host "✅ No Safeguard Holds detected."
    }
}


# === WINDOWS UPDATE CHECK ===
if ($RunWUCheck) {
    Write-Host ""
    Write-Host "🧹 Checking for and removing policy keys that block Windows Update..."

    $pathsToClean = @(
        @{ Path = "HKLM:\SOFTWARE\Policies\Microsoft\Windows\WindowsUpdate"; Name = "DoNotConnectToWindowsUpdateInternetLocations" },
        @{ Path = "HKLM:\SOFTWARE\Policies\Microsoft\Windows\WindowsUpdate"; Name = "DisableWindowsUpdateAccess" },
        @{ Path = "HKLM:\SOFTWARE\Policies\Microsoft\Windows\WindowsUpdate\AU"; Name = "NoAutoUpdate" }
    )

    foreach ($item in $pathsToClean) {
        try {
            $property = Get-ItemProperty -Path $item.Path -Name $item.Name -ErrorAction SilentlyContinue
            if ($null -ne $property) {
                Remove-ItemProperty -Path $item.Path -Name $item.Name -ErrorAction SilentlyContinue
                Write-Host "✅ Removed $($item.Name) from $($item.Path)"
            }
        } catch {
            # Do nothing
        }
    }
}




# === WINDOWS UPDATE RESET ===
if ($RunWUReset) {
    Write-Host ""
    Write-Host "🔄 Performing Windows Update Reset..."

    Stop-Service wuauserv -Force -ErrorAction SilentlyContinue -WarningAction SilentlyContinue
    Stop-Service bits -Force -ErrorAction SilentlyContinue -WarningAction SilentlyContinue
    Stop-Service cryptSvc -Force -ErrorAction SilentlyContinue -WarningAction SilentlyContinue
    Stop-Service msiserver -Force -ErrorAction SilentlyContinue -WarningAction SilentlyContinue
    Stop-Service uhssvc -Force -ErrorAction SilentlyContinue -WarningAction SilentlyContinue

    $sdPath = "C:\Windows\SoftwareDistribution"
    $catrootPath = "C:\Windows\System32\catroot2"

    if (Test-Path $sdPath) {
        Remove-Item -Path $sdPath -Recurse -Force -ErrorAction SilentlyContinue
        New-Item -Path $sdPath -ItemType Directory -Force | Out-Null
    }

    if (Test-Path $catrootPath) {
        Remove-Item -Path $catrootPath -Recurse -Force -ErrorAction SilentlyContinue
        New-Item -Path $catrootPath -ItemType Directory -Force | Out-Null
    }

    Start-Service wuauserv -ErrorAction SilentlyContinue  -WarningAction SilentlyContinue
    Start-Service bits -ErrorAction SilentlyContinue  -WarningAction SilentlyContinue
    Start-Service cryptSvc -ErrorAction SilentlyContinue  -WarningAction SilentlyContinue
    Start-Service msiserver -ErrorAction SilentlyContinue  -WarningAction SilentlyContinue
    Start-Service uhssvc -ErrorAction SilentlyContinue  -WarningAction SilentlyContinue

    Write-Host ""
    Write-Host "✅ Windows Update services restarted and folders reset."
}


# === DSREG STATUS ===
if ($RunDSREGCheck) {
    Write-Host ""
    Write-Host "🔐 Checking Entra ID Join Status..."
    $aad = dsregcmd /status | Select-String "AzureAdJoined"
    $hybrid = dsregcmd /status | Select-String "DomainJoined"

    Write-Host ""
    if ($aad -match "YES") {
        Write-Host "✅ Device is Enta ID joined."
    } else {
        Write-Host "❌ Not Entra ID joined."
    }

    Write-Host ""
    if ($hybrid -match "YES") {
        Write-Host "✅ Device is Hybrid joined."
    } else {
        Write-Host "❌ Not Hybrid joined."
    }
}


# === INTUNE MANAGEMENT EXTENSION CHECK ===
if ($RunIMECheck) {
    Write-Host ""
    Write-Host "🛠 Restarting Intune Management Extension..."
    Stop-Service IntuneManagementExtension -Force -ErrorAction SilentlyContinue -WarningAction SilentlyContinue
    Start-Service IntuneManagementExtension -ErrorAction SilentlyContinue -WarningAction SilentlyContinue
}

# === INTUNE MANAGEMENT EXTENSION REPAIR ===
if ($RunIMERepair) {
    # Uninstall
    msiexec /x "{1F8496D2-52D3-4DA4-BC6D-48A74D1C42E0}" /quiet /norestart

    # Re-download and reinstall
    Invoke-WebRequest "https://go.microsoft.com/fwlink/?linkid=2156826" -OutFile "$env:TEMP\IME.msi"
    Start-Process msiexec.exe -ArgumentList "/i `"$env:TEMP\IME.msi`" /quiet /norestart" -Wait
}


# === POLICY SIMULATION ===
if ($RunPolicySimulation) {
    Write-Host ""
    Write-Host "🔒 Simulating MDM policy update to trigger MDM policy to refresh..."
    reg add "HKLM\SOFTWARE\Microsoft\PolicyManager\current\device\System" /v "DummyPolicy" /t REG_DWORD /d 1 /f >$null 2>&1
    Start-Sleep -Seconds 3
    reg delete "HKLM\SOFTWARE\Microsoft\PolicyManager\current\device\System" /v "DummyPolicy" /f >$null 2>&1
    Write-Host ""
    Write-Host "✅ Policy refresh simulated."
}


# === LOG COLLECTION ===
if ($CollectCompleteLogs) {
    Write-Host ""
    Write-Host "📁 Collecting logs..."

    $timestamp = Get-Date -Format "yyyy-MM-dd_HH-mm-ss"
    $tempFolder = "C:\Temp\IntuneLogs_$timestamp"
    $zipPath = "$tempFolder.zip"

    New-Item -ItemType Directory -Path $tempFolder -Force | Out-Null

    wevtutil epl "Microsoft-Windows-DeviceManagement-Enterprise-Diagnostics-Provider/Admin" "$tempFolder\MDM_EventLog.evtx"
    wevtutil epl "Microsoft-Windows-WindowsUpdateClient/Operational" "$tempFolder\WU_EventLog.evtx"
    Get-WindowsUpdateLog -LogPath "$tempFolder\WindowsUpdate.log"

    mdmdiagnosticstool.exe -area "DeviceProvisioning;DeviceEnrollment;Autopilot;DeviceManagementEnterprise-Diagnostics-Provider;Accounts;ModernApps;Connectivity;WNS;PushNotifications" -cab "$tempFolder\MDMDiag.cab"
    expand.exe "$tempFolder\MDMDiag.cab" -F:* $tempFolder
    Remove-Item "$tempFolder\MDMDiag.cab" -Force

    Compress-Archive -Path $tempFolder\* -DestinationPath $zipPath -Force

    Write-Host ""
    Write-Host "✅ Logs collected and saved to: $zipPath"
}

if ($CollectWULogsOnly) {
    Write-Host ""
    Write-Host "📤 Building Windows Update Logs ... Please Wait !"
    $timestamp = Get-Date -Format "yyyy-MM-dd_HH-mm-ss"
    $tempFolder = "C:\Temp\IntuneLogs_$timestamp"

    New-Item -ItemType Directory -Path $tempFolder -Force | Out-Null

    Get-WindowsUpdateLog -LogPath "$tempFolder\WindowsUpdate.log" -ForceFlush -Confirm:$false
}


# === FORCE COMPATIBILITY DATA SUBMISSION | Touching or updating LastDeviceScanTime can help re-initiate the compatibility assessment pipeline ===
Write-Host ""
Write-Host "📤 Forcing compatibility data submission to Windows Update for Business..."

# This registry key is often touched to ensure data is reprocessed
$null = New-ItemProperty -Path "HKLM:\SOFTWARE\Microsoft\Windows NT\CurrentVersion\AppCompatFlags\TargetVersionUpgradeExperienceIndicators" `
    -Name "LastDeviceScanTime" -Value ([System.Management.ManagementDateTimeConverter]::ToDmtfDateTime((Get-Date))) `
    -PropertyType String -Force

Start-Process -FilePath "C:\Windows\System32\compattelrunner.exe" -ArgumentList "-maintenance" -NoNewWindow -Wait

Write-Host "✅ Compatibility scan & data submission triggered."


# Scan for updates (recommended method)
write-host "Trigger 'Scan for Updates'"
UsoClient StartScan
wuauclt /detectnow

# UsoClient StartDownload         # Begin downloading available updates
# UsoClient StartInstall          # Install downloaded updates
# UsoClient ScanInstallWait       # Full flow: scan + download + install


# PSWindowsUpdate method
<#
 Get-WindowsUpdate -MicrosoftUpdate
#>

# COM method
<#
 $UpdateSession = New-Object -ComObject Microsoft.Update.Session
 $UpdateSearcher = $UpdateSession.CreateUpdateSearcher()
 $SearchResult = $UpdateSearcher.Search("IsInstalled=0")
 $SearchResult.Updates | Select-Object Title, IsDownloaded, IsInstalled
#>

Stop-Transcript

Troubleshooting Windows Feature Updates not being deploying using Intune/AutoPatch/WUfB

Intune/AutoPatch/WUfB troubleshooting

Windows Client troubleshooting

Workaround for Stuck Update Stack

Scripts (Github)

Intune: Get overview of enrollment status in AutoPatch/WUfB

Authentication (Microsoft Graph)

Intune: Force Un-enroll Windows Client devices from WUfB AutoPatch, where state is NOT ‘Enrolled’ (Feature Updates only)

Intune: Force Delete All Windows Client devices from WUfB AutoPatch, where Feature Update enrollment state is stuck in ‘enrolling’ or ‘unenrolling’

Intune: Enroll Windows Client devices into WUfB AutoPatch (Feature Updates only) – will also include devices, that was deleted before (catch-up)

Intune: Enroll Windows Client devices into WUfB AutoPatch with ‘NotEnrolled’ state (Feature Updates only)

Intune: Force Un-enroll Windows Client devices from WUfB AutoPatch (Feature Updates only)

Intune: Force Delete All Windows Client devices from WUfB AutoPatch (Only use, if you want complete reset !!!)

Intune: Enroll All Windows Client devices into WUfB AutoPatch (Quality Updates only)

Intune: Enroll All Windows Client devices into WUfB AutoPatch (Driver Updates only)

Intune: Enroll Windows Client devices into WUfB AutoPatch with ‘NotEnrolled’ state (Quality Updates only)

Intune: Enroll Windows Client devices into WUfB AutoPatch with ‘NotEnrolled’ state (Driver Updates only)

Endpoint: Windows client troubleshooting

Like this:

Leave a ReplyCancel reply

Intune/AutoPatch/WUfB troubleshooting

Windows Client troubleshooting

Workaround for Stuck Update Stack

Scripts (Github)

Intune: Get overview of enrollment status in AutoPatch/WUfB

Authentication (Microsoft Graph)

Intune: Force Un-enroll Windows Client devices from WUfB AutoPatch, where state is NOT ‘Enrolled’ (Feature Updates only)

Intune: Force Delete All Windows Client devices from WUfB AutoPatch, where Feature Update enrollment state is stuck in ‘enrolling’ or ‘unenrolling’

Intune: Enroll Windows Client devices into WUfB AutoPatch (Feature Updates only) – will also include devices, that was deleted before (catch-up)

Intune: Enroll Windows Client devices into WUfB AutoPatch with ‘NotEnrolled’ state (Feature Updates only)

Intune: Force Un-enroll Windows Client devices from WUfB AutoPatch (Feature Updates only)

Intune: Force Delete All Windows Client devices from WUfB AutoPatch (Only use, if you want complete reset !!!)

Intune: Enroll All Windows Client devices into WUfB AutoPatch (Quality Updates only)

Intune: Enroll All Windows Client devices into WUfB AutoPatch (Driver Updates only)

Intune: Enroll Windows Client devices into WUfB AutoPatch with ‘NotEnrolled’ state (Quality Updates only)

Intune: Enroll Windows Client devices into WUfB AutoPatch with ‘NotEnrolled’ state (Driver Updates only)

Endpoint: Windows client troubleshooting

Share this:

Like this:

Leave a ReplyCancel reply
